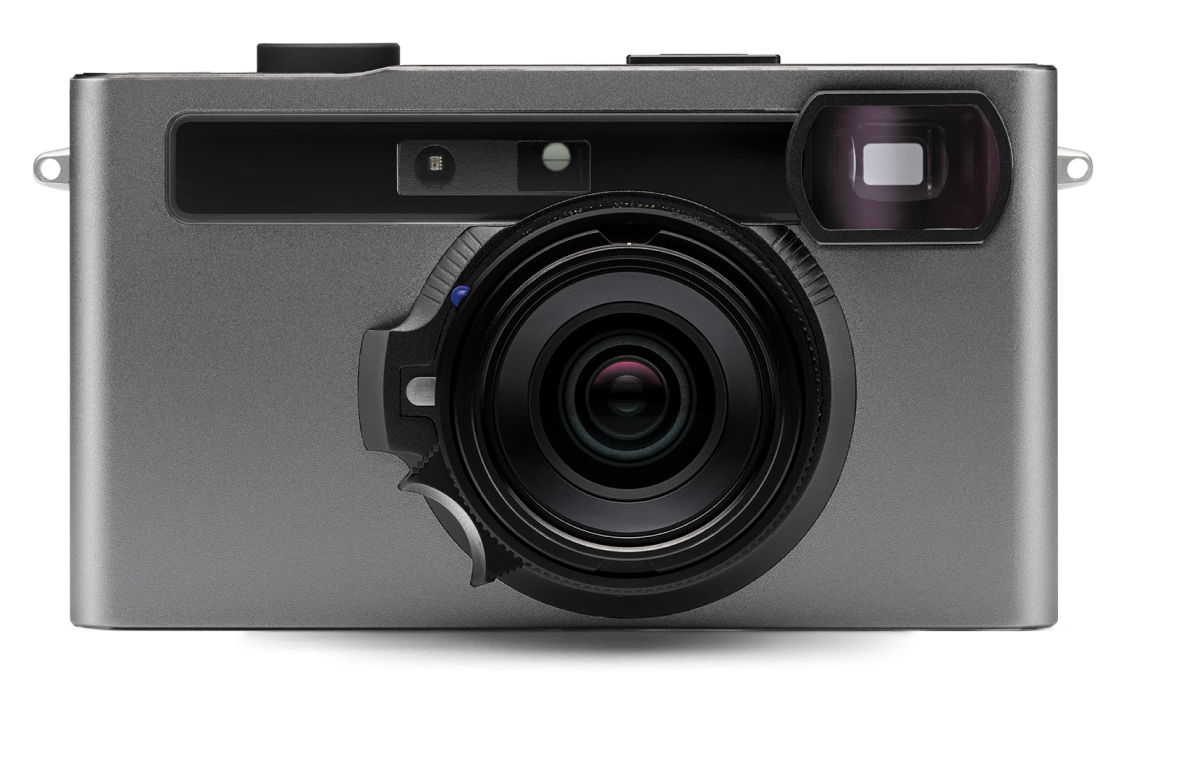

The New Pixii Camera
Connected digital camera with rangefinder viewfinder
Model A1571

Optical viewfinder with coinciding rangefinder (magnification 0.67X)
Independent LED backlit frame lines for standard prime lenses: 28mm, 35mm, 40mm and 50mm
Exposure indicators
Dynamic information display
Automatic parallax correction
Automatic LED intensity adjustment

26MP BSI-CMOS sensor
6244x4168 active pixels, 3.76µm pixel pitch
3:2 APS-C optical format (1.5 ratio to 35mm)
Electronic shutter, speeds from 2s to 1/32000
12-14-16-bits programmable AD converter
Programmable gain from 0 to +36dB
Native gain: ISO 160 up to ISO 12800
Standard Bayer color filter
Optical stack with micro-lenses, no low-pass filter, IR filter < 1.0mm
Native monochrome mode
Output: Digital Negative (DNG), Mono DNG or JPEG format

Interchangeable lens system
Leica-M compatible lens mount
Manual focus and aperture control
Dark chamber designed to fit collapsible lenses
Compatible with M39/LTM lenses via adapter (not included)

Dual-block machined aluminium body
ISO accessory shoe
Tripod socket A ¼
Lugs for carrying strap
Dimensions : 138x79x33mm
Weight: 460g (incl. battery)
Finish: space gray, matte black

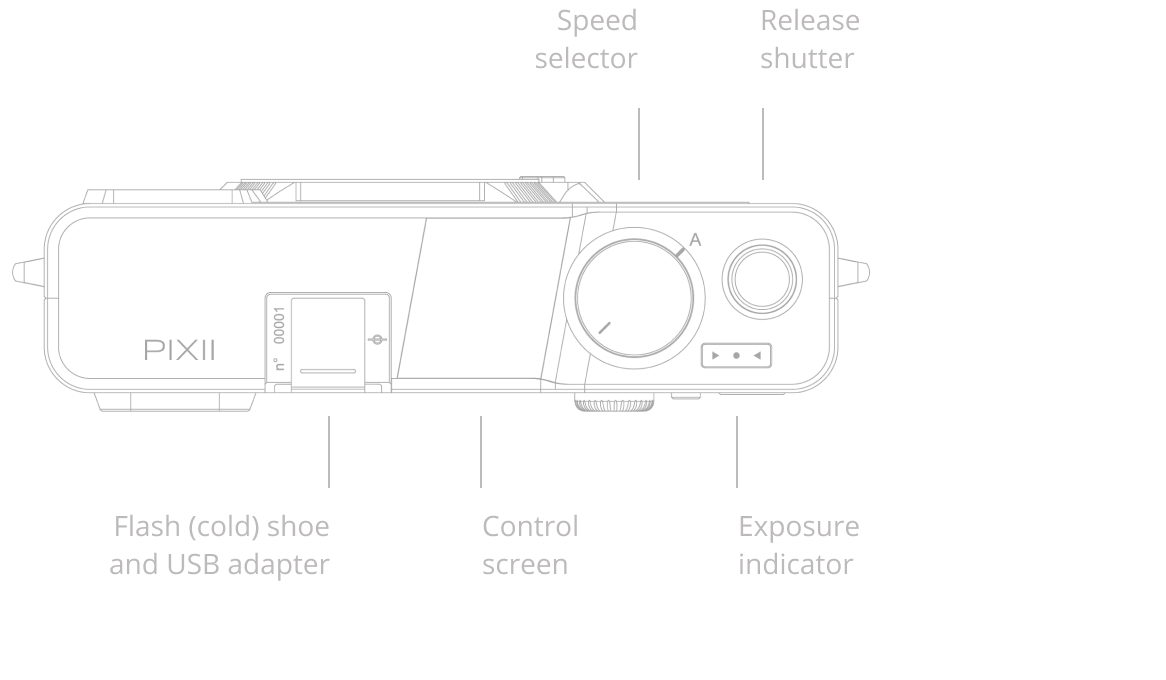

Manual shutter speed selector
Automatic speed mode
2 stage shutter button: exposure metering/lock and shutter release
Top panel OLED control screen
In-finder control screen for settings and menu control
Quick ISO selection, white-balance and supplementary settings via integrated menu

Dual core ARM SoC with integrated FPGA accelerator
Image co-processor
Wi-Fi 802.11 b/g/n connectivity
Bluetooth LE 5.0
USB-C connector, dual-role
Storage: 8Go or 32Go internal

Li-ion 7.2V battery, 1080mAh capacity, model NP-FW50
Integrated USB charger
Programmable suspend and power off timer

16GB - can store up to 360 DNG images or more than 750 JPEG files.
32GB - about 800 DNG images or more than 1600 JPEG files.
64GB - 1600 DNG images or 3200 JPEG files.
128GB - 3200 DNG images or 6400 JPEG files.

Note: JPEG files are about 20MB on average but this can vary depending on the scene and ability to compress. DNG files are not compressed and store RAW images without information loss.
